Flip flop –
“A digital computer needs devices which can store information.”
A flip flop is a binary storage device , it can store binary bit either 0 or 1. It has two stable States : high and low I.e. 1 , 0 .
Or
A basic sequential logic circuit is a flip flop has bistable state or two stable state , first is “0” and second is “1” .
Type of flip flops –
1. R-S flip flop
2. D – flip flop
3. J – k flip flops
4. Master slave J-K flip flop.
Characteristics –
flip flop is a bistable device, it has only two States 0 and 1 .
Flip flop has two outputs , one output is complement of other.
R-S flip flop –
A flip flop is a device with two stable state. It is reset and second is set. The S-R latch is the simplest flip flop. It is also called S-R (R-S) flip flop.
In this circuit one of the transistors it Saturated and the other is cut off.
We discuss two type of R-s flip flop :
1 Transistor latch
2. diode latch
Transistor latch using :
There are two control input S and R
1. In first case when S = 0 , R = 0 . Then transistor T1 not working because of forward bias now T2 base find R = 0 and from Q point as 5v voltage. It T2 is saturated the T2 connected to ground and Q connect T2 Then point Q = 0 .
2. Second case R = 0 , S = 1 . S = 1 connect to transistor T1 base point T1 saturated and T1 connect to ground so Q = 0.
Now Q = 0 , R = 0 both value to comes T2 each transistor than T2 not working but transistor T1 connect to Q , so Q = 1
3. Third case R = 1 , s = 0 for value of R = 1 T2 transistor then T2 not working , but transistor T1 connect to Q so We find transistor Q = 1
Third case R = 1 ,S = 0 for value of R , T2 transistor saturated and Q connect to ground Q = 0
Then Q = 0 , s = 0 both values comes for T1 transistor but T1 not saturated Q = 0.
4. Fourth case R = 1 , s = 1 . This is called race condition .
| R | S | Q | Comment |
| 0 | 0 | NC | NO CHANGE |
| 0 | 1 | 1 | SET (0) |
| 1 | 0 | 0 | RESET (0) |
| 1 | 1 | NA | NOT ALLOWED |
Timing diagram –
Diode latch R-S flip flop –
There are two types of diode latch flip flops –
1. NOR latches
2. NAND latches
NOR latches –
R-S (S-R) flip flop can be constructed with the help of 2 NOR gates which are available as ICs .
Working-
1. Let Q = 0 and Q = 1 in ( initial value) when R=0 and S = 0.
Now the inputs to hence output q = 0
similarly input to the NOR Gate B are S = 0 and q = 0 , then output Q = 1.
Hence no change in the state of ff.
2. when R = 0 , S = 1.
Now the input the NOR gate B are S=0 and Q = 1 the output Q should be 0.
Q = 0
similarly now the inputs to the NOR Gate A are R = 0 and Q = 0 hence it is output Q = 1
hence the result of the FF set .
3. when R=1 , S = 0
Now the input the NOR gate A are R = 1 and Q = 0 then the output Q should be 0 .
Q= 0
similarly now the inputs to the NOR gate B are s = 0 , Q = 0 then the output Q=1
This condition are reset.
4. When both S and R. R = 0 , S= 1
then both the output Q and Q will be forced to be in 0 state.
But Q = 0 and Q = 0 is meaningless
condition are not allowed
Truth table –
| R | S | Q | Q | Comment |
| 0 | 0 | 0 | 1 | NO CHANGE |
| 0 | 1 | 1 | 0 | SET |
| 1 | 0 | 0 | 1 | RESET |
| 1 | 1 | 1 | 0 | NOT ALLOWED |
NAND latches –
1. initially let Q = 0 , Q = 1 suppose R = 1 and S = 1 , Then input to the NAND Gate A are S = 1 , Q = 1 , so that the output Q = should be in o state.
Q = 0
similarly the NAND Gate B are R = 1 , Q = 0
Then the outputs becomes Q should be 1 .
Q = 1
The condition is no change.
2. when R = 1 , S = 0.
when the inputs S = 0 and Q = 1 with the NAND Gate A form the output becomes Q should be 0.
Q = 0
similarly the NAND gate B are R = 1 and Q = 0 .
Then the output become Q should be 0.
Q = 1.
3. When S = 1 and R = 0.
Now the gate III condition just opposite. Then it is obvious that the flip flop resets.
I.e. Q becomes 0.
4. when R = 0 , S = 0 .
Then the don’t case condition lead to the result that Q = 1 , Q = 1 , but this is meaningless.
The condition is not allowed.
Truth table –
| R | S | Q | Q | COMMENT |
| 1 | 1 | 0 | 1 | NO CHANGE |
| 1 | 0 | 1 | 0 | SET |
| 0 | 1 | 0 | 1 | RESET |
| 0 | 0 | 1 | 1 | NOT ALLOWED |
Timing diagram –
Clocked flip-flop –
“This could be achieved with a modified version of the flip flop called as a clocked RS FF.”
It is very useful to add clock to SR flip flop to shown this figure.
Symbol –
Circuit diagram –
Action Of Clocked R-S Flip Flop-
1. When the clock input (CK) is low condition both the AND Gates are disabled.
Thus their output remains low (0). This makes S1 = 0 and R1 = 0 the state of the FF will not change .
2.When CLK = 1 , then the AND GATES are enabled and the S , R inputs are able to reach at the inputs of the RS FF .
Depending on the states of R and S inputs the flip flops can SET RESET .
All possible states of R and S along with the corresponding state of the output.
Working –
Case I When CLK = 0
1. S = 0 , CLK = 0 , Then S1 = 1 similarly R = 1 , CLK = 0 , R1 = 1 in NAND Gate.
S1 ,R1 NC condition.
2. S = 0 , CLK = 0 then S = 1
And R = 1 , CLK = 0 , Then R1 = 1 NC condition
3. S = 1 , CLK = 0 Then S1 = 1
R = 0 , CLK = 0 Then R1 = 1
4. S = 1 , R = 1 , then NC change.
CASE II . When CLK = 1
1. s = 0 , CLK = 1 Then S1 = 1
R = 1, CLK = 1 Then R1 = 0 and
We know S1 = 1 , R1 = 0 is called reset condition Q = 0
2. S = 1, CLK = 1 Then S1 =0
R = 0 , CLK = 1 Then R1 = 1
and we know S1 = 0 , R1 = 1 is called set condition Q = 1
3. S = 0 , CLK = 1 then S1 = 1
R = 0 , CLK = 1 then R1 = 1 and
S1 and R1 = 1 Then Q = no change.
Truth Table –
| CLK | S | R | S1 | R1 | Q |
| 0 | 0 | 0 | 1 | 1 | NC |
| 0 | 0 | 1 | 1 | 1 | NC |
| 0 | 1 | 0 | 1 | 1 | NC |
| 0 | 1 | 1 | 1 | 1 | NC |
| 1 | 0 | 1 | 1 | 0 | 0 (RESET) |
| 1 | 1 | 0 | 0 | 1 | 1 (SET) |
| 1 | 0 | 0 | 1 | 1 | NC |
| 1 | 1 | 1 | 0 | 0 | NOT ALLOWED |
Timing diagram –
Disadvantage –
1. race condition.
2. level locking (means only one Level work (high).
D flip flop –
“Clocked RS flip flop can be modified to a better version called as D-type flip-flop.”
This flip flop possesses only one data input. The D flip flop is widely used , it is also know as a data or delay flip flop.
Symbol –

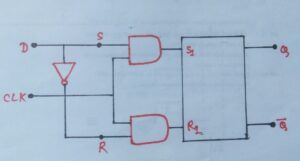

Circuit Diagram –
Working –
CASE I .
When D = 1 then S = 1 and R = 0 hence as clock goes high , the flip-flop will be Set or Q will become 1
Q = 1 .
CASE II.
If D = 0 then S = 0 and R = 1 Hence as the clock goes high the flip-flop will RESET
Q = 0
Edge Triggered Flip Flop –
The clock input pulses and corresponding output at the differentiating circuit. This output consists of positive and negative going spikes.
There are two types –
1. Positive edge triggered FF –
The flip-flop responds for 0 to 1 change of the clock pulse such a flip flop is called as a positive edge triggered flip flop.
2. Negative Edge Triggered Flip Flop –
A circuit which respond to 0 to 1 change of the clock pulse or at the fulling edge is called as a negative edge triggered flip flop.

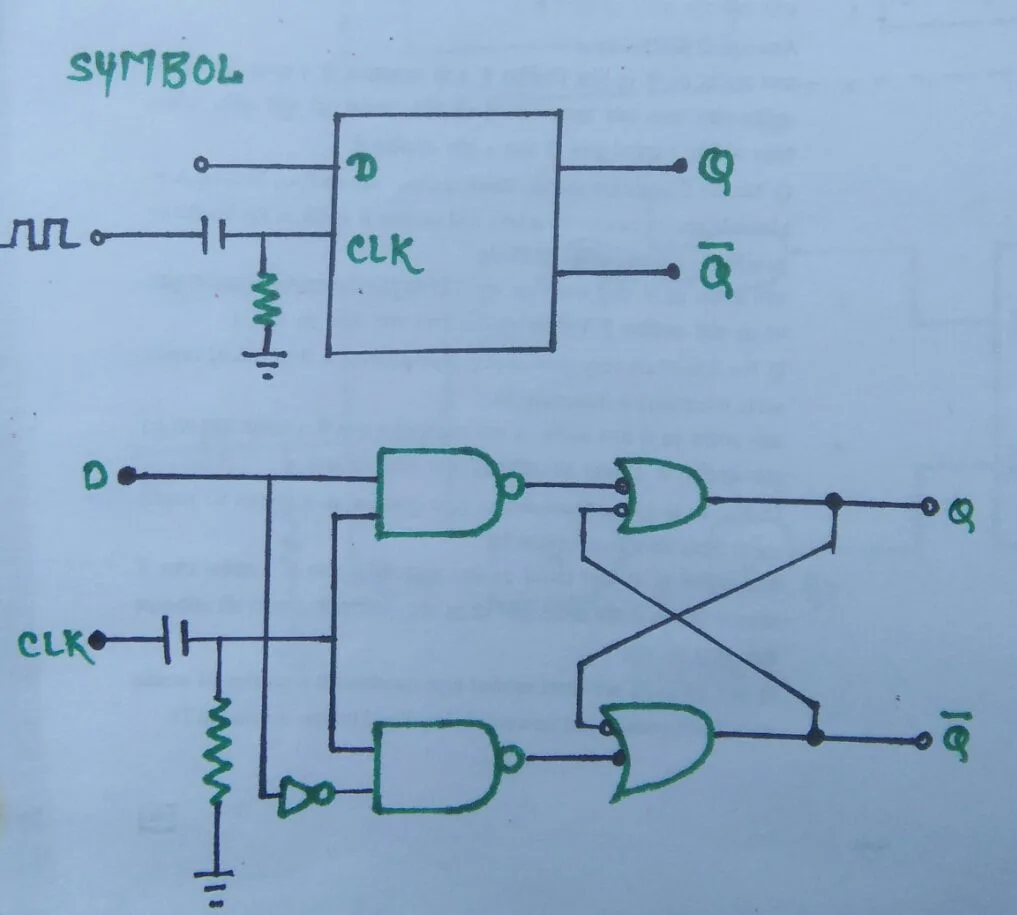

Symbol & Circuit Diagram –
CASE I . When CLK = 0 then each value of D use find the output no change.
CASE II. When CLK = 1
1. When CLK = 1 Then D value do not. Then output find NC condition.
2. IF CLK is falling edge output remains find NC condition.
3. If CLK is rising edge then D = 1 then find output Q = 1 .
4. If CLK is rising edge and D = 0, then find output Q = 0.
Truth Table –
| CLK | D | Q |
| 0 | X | NC |
| 1 | X | NC |
| DOWN | X | NC |
| UP | 0 | 0 |
| UP | 1 | 1 |
Disadvantage –
In this output change only on the rising or falling edge of CLK .
Preset And Clear –
It should be clear that the output of a flip flop changes whenever a clock pulse is applied.
These leads which help to set or clear (reset) the flip-flop are independent of clock . This will be clear form the discussion to follow.
Preset –
Preset is called “direct set” means unclocked.
Clear –
Clear is called “direct reset“.
Working –
1. when preset = clear = 0 then gate P and Q both don’t case their second output is not allowed Q = * .
2. when preset = 0 , clear = 1 then R = 0 , but Q gate depend upon their second input in the NAND Gate latch , don’t care Q = 1.
3. when preset = 1 clear = 0 then S = 0 , so don’t care Q = 1 and similarly Q = 1 (Reset ).
4. when preset = 1 = clear then if CLK = 0 for P gate input are 1 there R = 1 similarly S = 1 then output NC condition.
5.Preset = clear = 1 then CLK = 1
A’ = 0 , Preset = 1 then R = 0
B’ = 0 , clear = 1 then S = 0
6. Preset = clear = 1 then CLK = low
A’ = x then R = 1
B’ = x then S = 1
NC condition.
7. Preset = 1 = clear then CLK = high
D= 0 , CLK = High , A’ = 1 , Preset = 1 , R = 1
And D’ = 1 ,CLK = high, B’ = 0 , clear = 1 , S =0.
8. Preset = 1 = clear then CLK = high
D = 1 , CLK = high , A’ = 0, Preset = 0, R= 0
D’ = 0 , CLK = high , B’ = 1, clear = 1, S = 1
1 set.
Truth table –
| Preset | clear | CLK | D | Q |
| 0 | 0 | x | x | * |
| 0 | 1 | x | x | 1 |
| 1 | 0 | x | x | 0 |
| 1 | 1 | 0 | x | NC |
| 1 | 1 | 1 | x | NC |
| 1 | 1 | down | x | NC |
| 1 | 1 | up | 0 | 0 |
| 1 | 1 | up | 1 | 1 |
Timing Diagram –
Propagation Delay-
Propagation delay is the amount of time taken for the output of a gate.
o
A flip flop to change State after the input changes states. Output changing 0 to 1 and 1 to 0 .
Setup Time –
The setup time t is the minimum time for which the data bit must be present before the clock pulse arrives.
Hold Time –
Hold time is the minimum time for which the data must remain present after the edge of the clock pulse.
J-K flip flop –
“A J-K flip flop is a modification of the R-S flip flop in that uncertain state of the RS type is defined in the JK type.”
Or
“J-K flip flop is an essential building block of sequential circuits such as counters and shift registers.”
The data at the J and K inputs of the JK flip flop controls (set and reset) output.
Symbol & Circuit diagram –
Working –
1. When J = K= 0 (inactive State)
Both J and K = 0 clock pulse has no effect O/P.
Then R = 1 , S =1 then o/p is same NC condition.
2. When J = 0 , K = 1 (reset stage)
When J = 0 the o/p of AND GATE corresponding to J becomes 0.
example – R = 1 , S = 0 then the o/p Q is reset condition means Q = 0.
3. Set state ( J = 1 , K = 0 )
This case Q = 1, the AND gate responding to k becomes 0 ,
example R = 0 and S = 1 Therefore Q = 0 and Q = 1 it is called set condition.
Q = 1
4. Toggle stage –
J = 1 , K = 1
In this case R = 0 , S = 0 , toggle Mode.
Truth Table –
| CLK | J | K | Q |
| 0 | x | x | NC |
| 1 | x | x | NC |
| Down | x | x | NC |
| X | 0 | 0 | NC |
| Up | 0 | 1 | RESET (0) |
| Up | 1 | 0 | SET (1) |
| Up | 1 | 1 | Toggle (0) |
Timing Diagram –
In RS flip flop S = R = 1 gives unpredictable state of the output. In a JK flip flop J = k = 1 is permissible. In this condition the state output is changed , complement of the previous state is available .
If in the previous stage Q is 0 it becomes 1 and vice versa :
If a JK flip flop is level triggered ,the output is not stable with J = K = 1 so long as the clock is high . The output goes on changing its State to avoid such oscillations an R-C circuit is incorporated in the clock input circuit to make a J-K flip flop edge triggered , gives stable o/p.
Master slave JK flip flop –
“A JK master slave flip flop consists of two Gates or clocked RS flip flops called as a master and a slave.”
Output of the second flip flop (slave) is (fed) back to the input of the first (master) as shown fig .
When clock is high master is active and slave is inactive.
When clock is low master inactive but slaves is active.
Symbol and Circuit diagram –
Working-
1. Set Conditions –
J = 1 , K = 1 and clock = high , if Q = 0 , Q = 1 (previous state) then master will set in R = 1, S = 0 and slave will inactive .
When clock = low
In case master inactive but slave FF active and find input R = 1, s = 0 then R’ = 0 , S’ = 1 and output Q = 1 , Q = 0 , it is called set condition .
2. Reset Conditions
J = 0 , k = 1 clock = high in preset condition Q = 1, Q = 0 of flip flop.
During the high clock signal master will reset R = 0 , S = 1 but output remains same ( in preset condition Q = 0 ,Q = 1 ) as the slave will be inactive when clock is low .
When the clock signal is low : then master will be inactive and slaves be active so flip flop remains find reset it means Q = 0 , Q = 1.
Toggle condition –
J = K =1
In this above condition Q = 0 , Q = 1 (pre) condition of flip flop.
During the high clock signal master will toggle (means R = 0 , S = 1) so R= 1 , S = 0 and output remains same (Q = 0 , Q = 1) as the slave will be inactive when clock is high.
when low clock signal arrives master will be inactive and slave will be active which toggle the flip-flop output Q = 1 , Q = 0.
Truth table –
| CLK | J | K | Q | Q | COMMENT |
| 1 | 1 | 0 | 1 | 0 | SET |
| 1 | 0 | 1 | 0 | 1 | RESET |
| 1 | 1 | 1 | 1 | 0 | TOGGLE |

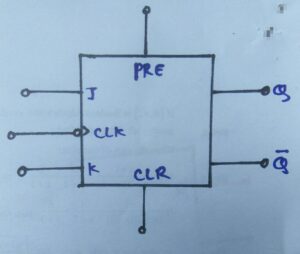

Master Slave Flip Flop With Preset And Clear –
Truth Table-
| PRESET | CLEAR | CLK | J | K | Q |
| 0 | 0 | x | x | x | * |
| 0 | 1 | x | x | x | 1 |
| 1 | 0 | x | x | x | 0 |
| 1 | 1 | x | 0 | 0 | NC |
| 1 | 1 | up to down | 0 | 1 | 0 |
| 1 | 1 | up to down | 1 | 0 | 1 |
| 1 | 1 | up to down | 1 | 1 | Toggle
|
